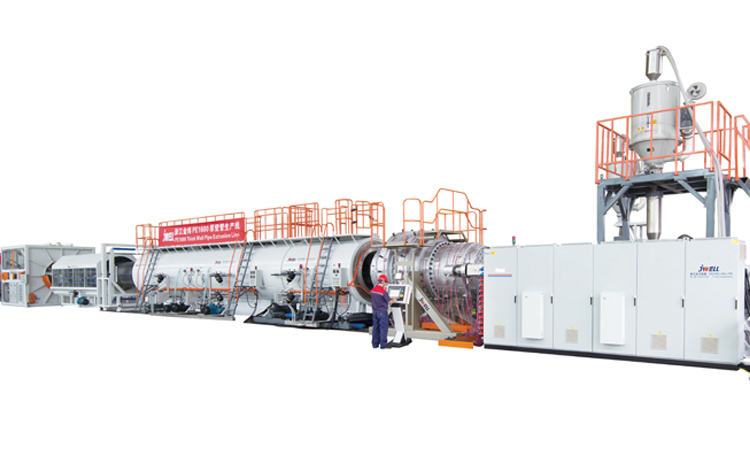

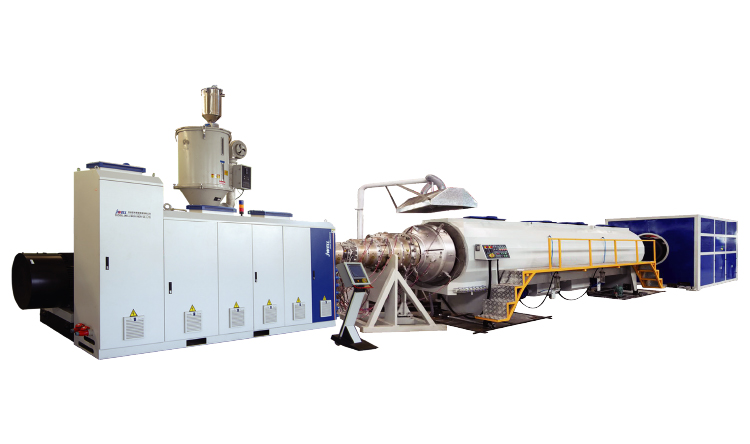

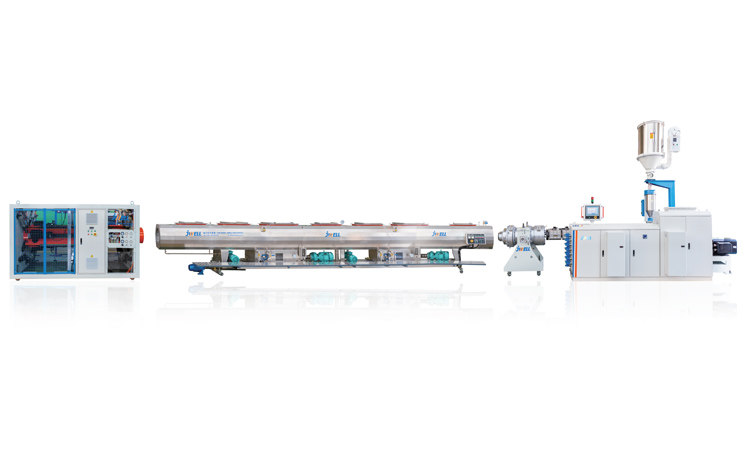

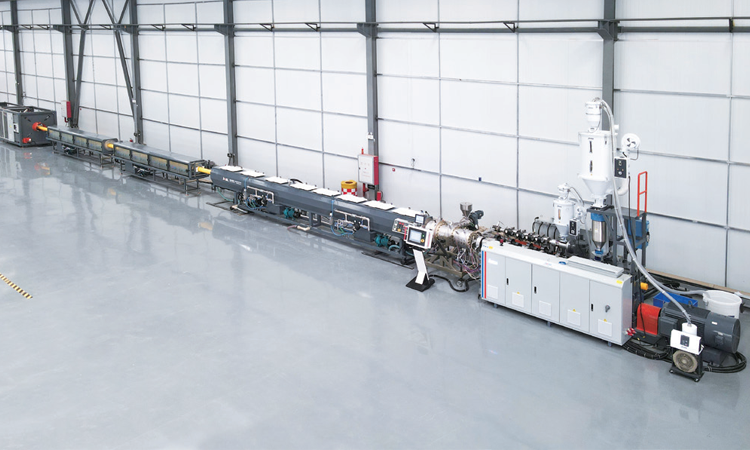

JWELL HDPE Large-diameter Pipe Extrusion Lines are mainly designed for production range from DN400-DN2000mm.

JWELL HDPE Extrusion Lines are equipped with Interlligent SIEMENS Computer System and PLC system, which provide high automatically operation.

The Main Extruders are normally equipped with 38:1 or 40:1 LD Ratio screw, provide high-output capaity and good plastization. And the main extruders can equip Gravimetric devices to ensure staby and steady extrusion capacity..

The Extrusion Die heads are designed for cover the wide production range, also equips IPC(Internal air cooling system) to ensure good shaping and low-sagging effect.

The vacuum tank and cooling tanks are designed to ensure perfect forming and enough cooling for the pipes products.

The haul-offs are designed with 8/10/12-caterpillar models, and the caterpillars are driving by separated servo motors and gearboxes, then to provide wide hauling speed range and strong pulling force.. Most important thing is haul-off will be synchronous running with main extruder

The cutter will provide accurent cutting pipe length, by receiving cutting singals from encoders.

Properties:This production line adopts european advanced technology,It is a new technical achievement of energy-saving  production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.compared with classic production line,the energy-saving effect reaches up to 35%,and the product efficiency is double increased, thus it is not only saving the  cost of space and labor force, but also improving efficiency. This production line has nice appearance,higher automatical  degree, reliable and stable production.

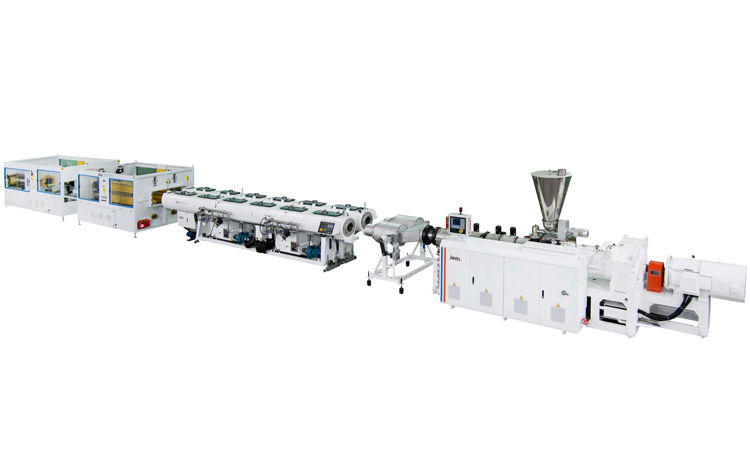

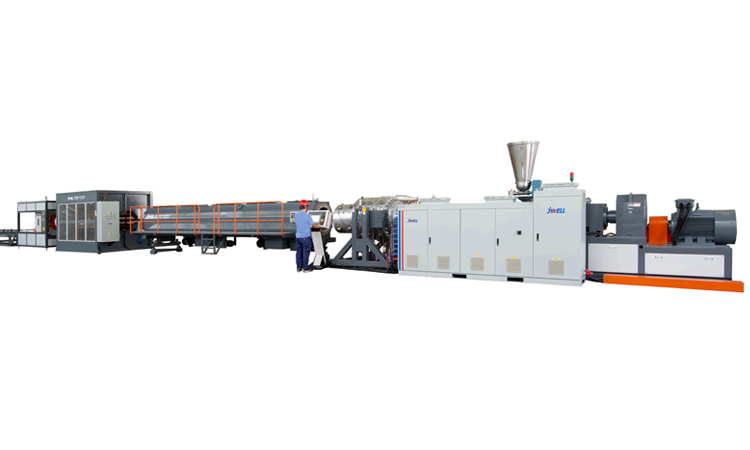

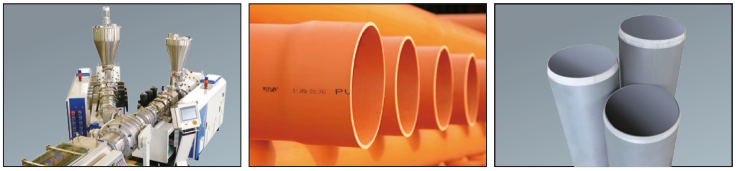

Properties: According to different diameters, different production requirements, a variety of special specifications of PVC twin-screw  extruders to be chosen. The special designed screw structure, uniform plasticizing, high output. PVC extrusion die head is made of high quality alloy steel, channel surface with brightness and anti-corrosive treatment. Wide  flow channel design to ensure the pass-through time of the melt in the die head and the largest extrusion production. In view of the large diameter PVC pipe,the vacuum tank is with double-chamber design, equipped with nylon supporting plates,  making pipe roundness and forming better. To match wide production range of PVC pipes,JWELL provide haul-off with 2-claw up to 10-claw,different modles of planetary  cutters..Also can equip online belling machine as an option.

Properties: Under high-output requirement for small diameter pipe production, the double-extrusion technology shows great  advantage. The characteristics of our dual-strand downstream equipment is with two sets of independent control circuit, the  speed of each side can be adjusted respectively, and can even produce different diameter of the pipe at the same time. Four strand extrusion line is suitable for the ≦32mm pipe with high-speed production, unilateral pipe speed up to 25 m/min. This extrusion line adopts special screw and mould design, uniform plasticizing, fast production speed, low energy consumption.  Easy controlling and operation, reduce the technical and running requirements the operators. And effectively save the workshop  space.

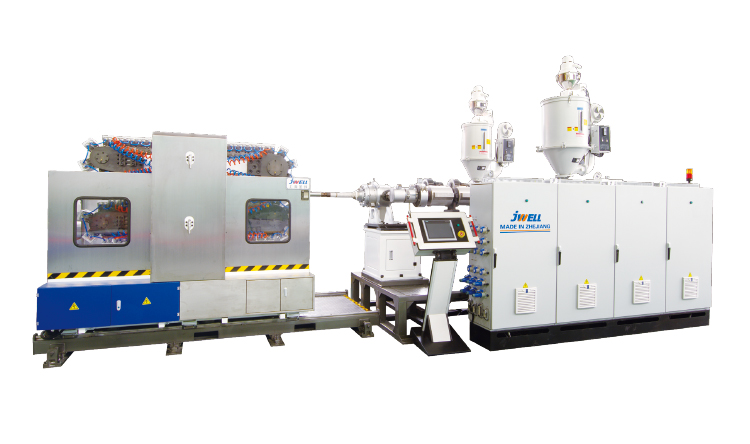

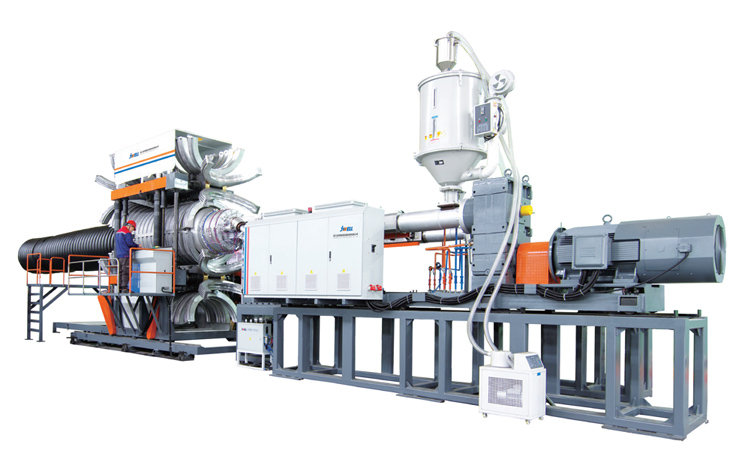

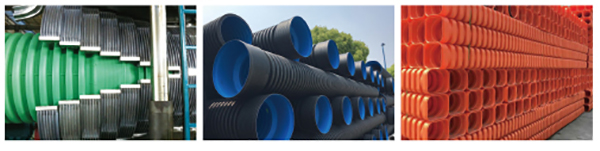

JWELL DWC Pipe Extrusion Lines can cover the production range from DN20-DN1200mm.

JWELL DWC Extrusion Lines are equipped with Interlligent SIEMENS Computer System and PLC system, which provide high automatically operation.

The Extrusion Lines can equip Single-screw extruders to produce PE/PP Double wall corrugated pipes, And these lines can also equip Double-screw extruder to produce PVC double-wall corrugated pipes.

The corrugator machine is cooled by chilled air, easy operation and low maintenance, and the Corrugator can support online belling function.

The forming blocks are made by high-quality aluminium alloy material, high rigid degree and easy cooling to ensure perfect pipe forming effect.

The Downstreams will be working synchronously with the extruders and corrugator.

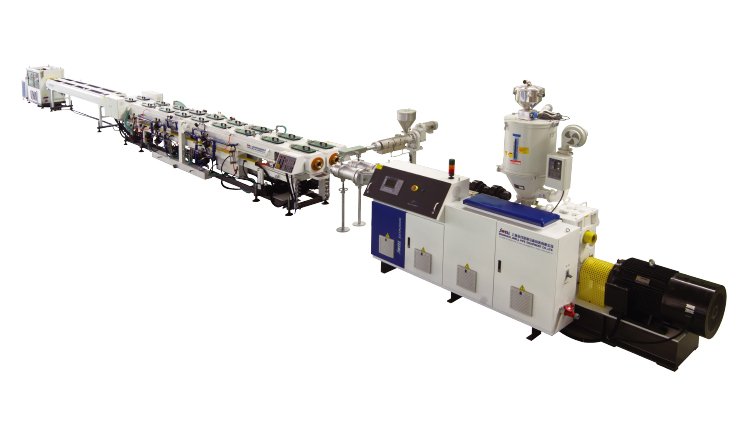

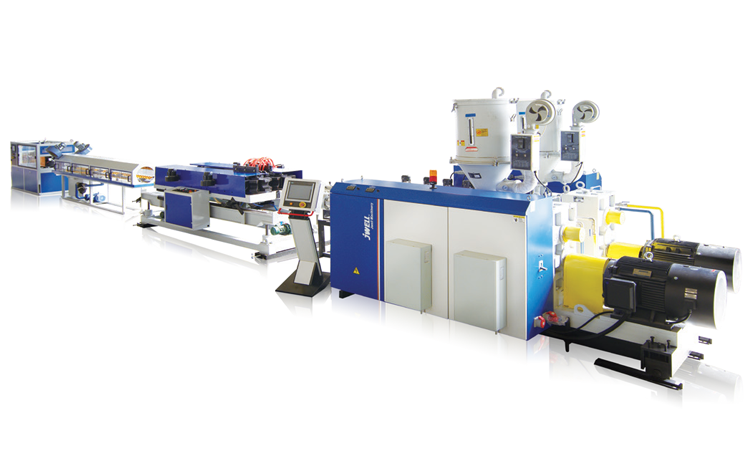

Properties: The high-efficiency PPR/HDPE single-strand and Double-strand pipe extrusion lines, are specially designed by  JWELL company, to match PP-R/HDPE material charatics. The lines equipped with self-designed JWS series high-efficiency  single-screw extruders, with SIEMENS PLC controlling system, then achieve automatic controlling of the whole line from main  extruder to down streams equipments. With high output capcity, reliable extrusion.

Properties: PPR/Glassfiber/PPR pipe is widely used in solar energy, thermal energy circulation system, heating system and  water supply, because of its higher pressure and temperature resistance, long service life, high strength and impact resistance,  and the prevention of pipe line sagging.

Properties: Our company's latest research and development of energy-saving high-speed production line, suitable for  high-speed polyolefin pipe extrusion.Specifically designed 38-40 L/D screw structure and the feeding slot barrel make the melt  extrusion and plasticizing effects greatly improved. High-torque, high-strength gearboxes ensure stable operation of the equipment. Extrusion molds and sizing sleeves adopt the most advanced design structure. The PLC variable frequency control vacuum tank,  servo-driven multi-track tractor, and high-speed chipless cutter are equipped with a meter weight control system. The pipe  extrusion weight is more accurate.

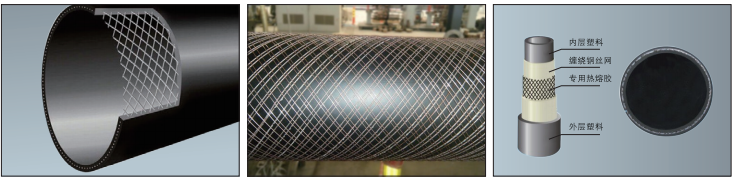

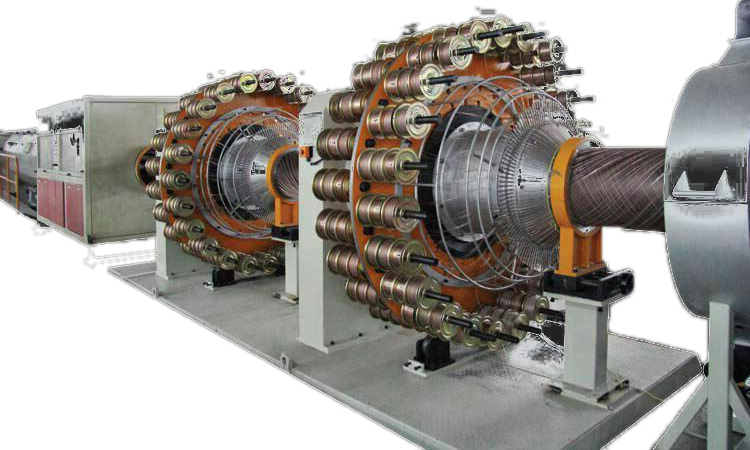

Properties:Steel Wire Frame Plastic Pipe, also called SRTP pipe, is a new type of steel framed polyethylene plastic pipe. It adopts  the raw material of high tensile over-plastic Steel wire mesh frame and thermoplastic PE. Steel wire mesh as reinforced framework and based on HDPE, it also adopts high performance HDPE modified bond resin to connect the inner space HDPE and outer  space HDPE with steel wire frame closely, so that it can have an excellent compounding effect. Since the high tensile steel wire  reinforcements are warped in continuous thermoplastic plastic, this composite pipe take the essence and discard the dross of  steel pipe and plastic pile.Three layers steel wire reinforced composite pipe is widely frame are widely used in the area of city  water supply, civil engineering, fossil oil, natural gas, chemical industry, power transmission pipelines, metallurgical mines, sea  water transport, shipbuilding, agriculture and the laying of fiber optic cables.

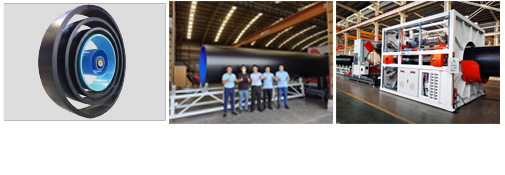

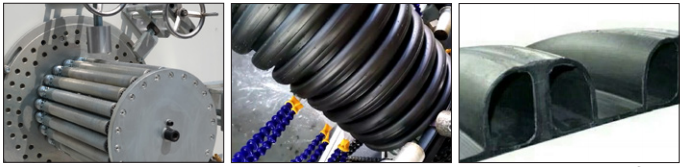

Properties: Large diameter HDPE hollow-wall coiled pipe is one of the best replacements for cement pipe. Jwell is one of the  earliest qualified suppliers for this line. We have strong technical advantage and rich experience in pipe production providng  excellent pipe machine characterised of stable performance and easy operation.The comprehensive indexes of Jwell machine  reach the domestic Top level.  1、The main extruder adopts efficient single screw extruder ensuring high speed and perfect quality extrusion. 2、Composite head is used with spiral rotational molding type with ingenious structure and unique design to ensure product quality. 3、Pipe product has high ring stiffness, mining used anti-static mashgas drainage and exhaust pipes can be produced by this machine. 4、Special pipe connectiot with convenient operation and economic construction.

Application: Pe Insulation Pipe is also called PE external protective pipe, jacket pipe, sleeve pipe. The directly buried polyurethane, polyester insulation pipe is composed of high-density polyethylene, polyurethane rigid foam insulation material, and steel pipe. The insulation layer is made of rigid polyurethane foam with density from 60kg/m3 to 80kg/m3, which is fully filled with the gap between the steel pipe and the casing, and has a certain bonding strength, which makes the steel pipe, the outer casing and the insulation layer form a solid whole. Polyurethane foam for directly buried insulating pipe has good mechanical and thermal insulation properties. In general, it can resist high temperature 120 °C by modification or combination with other insulating materials, suitable for all kinds of cold, hot water high and low temperature pipeline insulation engineering.

Performance and characteristics: Jinwei Company independently developed a new type of PE insulation pipe production line, using Jinhai, snail unique insulation pipe screw technology, stable extrusion. Combined with years of PE extrusion experience, designed in line with PE insulation pipe mold, mold pressure stability. Compared with the traditional blowing type, the production of the whole line is greatly improved, the surface is brighter and the operation automation is high.

Application: Corrugated pipe for air ventilation system is produced by two different PE material. Double wall corrugated pipe,  and designed by hollow structure. It is easy to install in the ceiling and roofing. Also, this corrugated pipe has good performance  to bear the cement. The pipe adopt special inner layer, smoothly, easy to clear, less resistance, sound-proof, insulation.

Properties: The self-designed new corrugated extrusion line for air ventilation pipe system, with precision forward-and-backward aiming system, special extrusion die head and water sleeve structure to match special material. The corrugator is new  model with water cooling system, preccise aiming system and easy changing system for forming blocks.

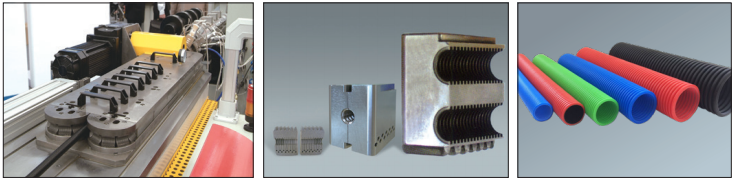

Mini single wall high speed corrugated pipe forming machine: Can produce two diameters or three diameters single wall corrugated pipe in the same mould blocks, which reduce the cost of the mould blocks and reduce the time for changing the mould blocks, increase the efficiency.

Properties: The pipe from this machine is anti-high temperature, anti-wear,and high strength, and it is widely used in electrical conduct, car conduct pipe, protective pipe, machine area and automatic meter area. With Jwell special design screw and advanced mould, the line is high speed, run stable and easy-control.

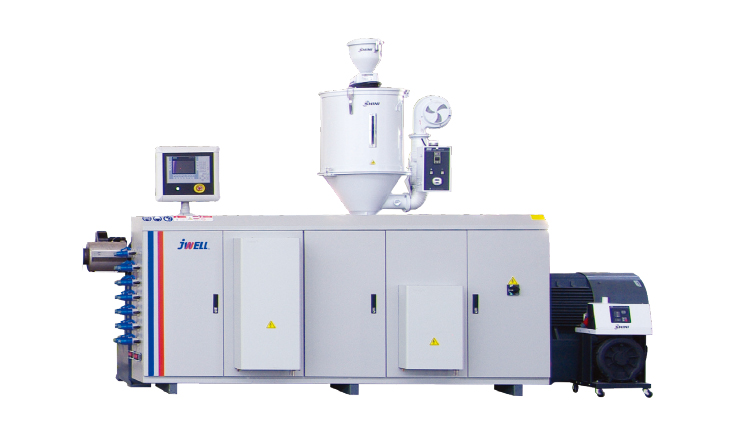

Properties: By using the new type barrier screw design, this extruder has a high extrusion capacity in high RPM with the low  energy consumption, and this extruder can gain a good mixing effect in the low temperature, and this extruder can control the  material shearing to get the ideal and even melt temperature, so that the ripple mark in the inner wall of the big diameter pipe  can be avoided.

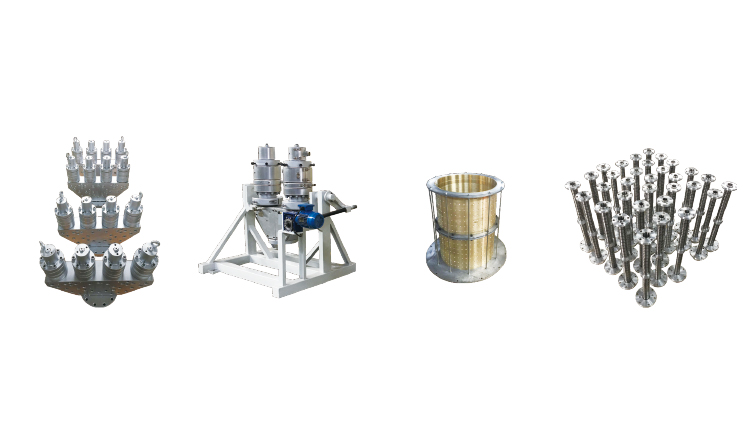

Single layer extrusion mould

●HDPE suitable for gas supply, water supply pressure pipe, max  diameter is 1600mm

●PPR suitable for 160mm hot water pipe

●PERT,PEX suitable for floor heating

●PA suitable for car oil pipe and gas pipe

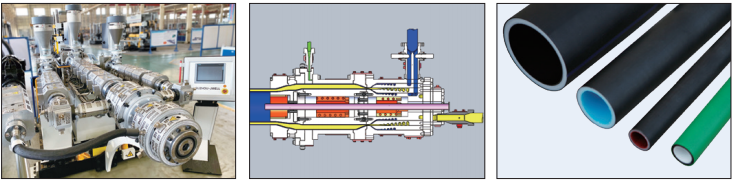

Multi layers co-extrusion mould

●EVOH oxygen resistance layer with a three-layer co-extrusion of the hot water pipe

●M-pp double-layer co-extruded trenchless pipe with friction or  scratch resistance

●Silicone inner layer with a silicon core pipe extrusion

●PE100 material with two or three layer co-extrusion water and gas  pipes, with diameters up to 1600mm.

Properties: PVC extrusion mould design and optimization of double-stent flow of the design to make pipes with strong shock  resistance. Mould combined with concentric, cone distibuter, suitable for any cross section of single-or multi-extrusion, smooth  flow design have belows advantages:

●Providing high quality fluence,no any corner during fluent

●Lower consumption

●Lower melting temperature

●Clean runner quickly when changing color

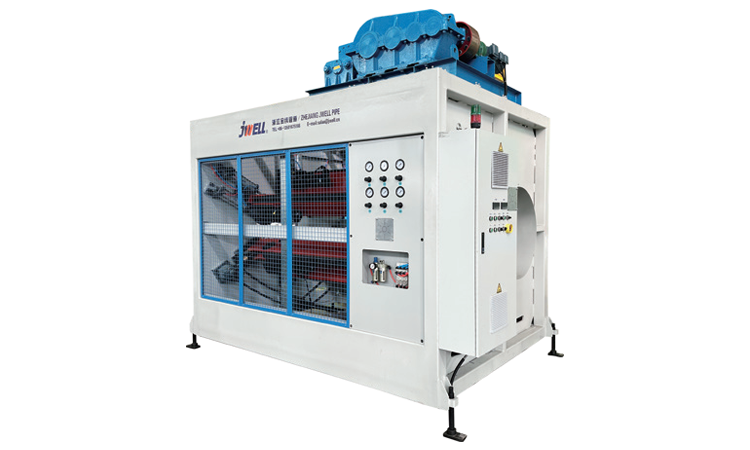

Properties: For different pipe diameter and extruder speed requirements, we designed all kinds of the Hall-off unit, have two  caterpillars, three caterpillars, four caterpillars, six caterpillars until upto 16 caterpillars. The wide adjustable range for the  Hall-off unit, running is stable and reliable, and small noise.

Each caterpillars by a separate asynchronous or servo motor drive, via digital controller keep the accuracy of the caterpillar speed synchronization. The large capacity compression air cylinder, contact length is overlength between the pipe and the caterpillar, can ensure a high friction tractive force. Based on the switchable control for the 1/2 caterpillar, can switch to each  other between the big pipe diameter and small pipe diameter, large scope of working for the Hall-off unit.

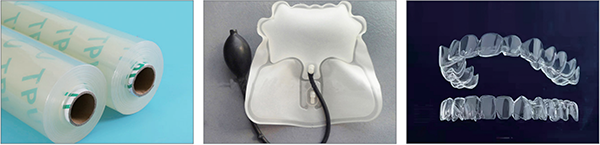

Application for TPU film in medical:

TPU material features excellent kink resistance, elasticity and flexibility. The internal pressure resistance is much higher than that of PVC, the transparency is better than that of PVC / EVA and TPO, high chemical resistance. Gamma ray and ETO can be used for sterilization, the drug adsorption is low and easy to bond. It is an ideal material for manufacturing a variety of medical equipment, including various infusion tubes, infusion tube drip, implants and other short-term applications.

TPU tooth socket introduction:

The invisible appliance made of safe and transparent elastic polymer material is used for treatment. Compared with the traditional fixed appliance, it does not need bracket and steel wire, the clinical operation is greatly simplified, the correction

process is time-saving and labor-saving, and the whole treatment process can be completed without others' awareness, without affecting daily life and social interaction. Invisible orthodontics is a high and new science and technology in the field of Orthodontics, which breaks the limitations of traditional orthodontics. JWELL supplies whole line for TPU tooth socket sheet extrusion line

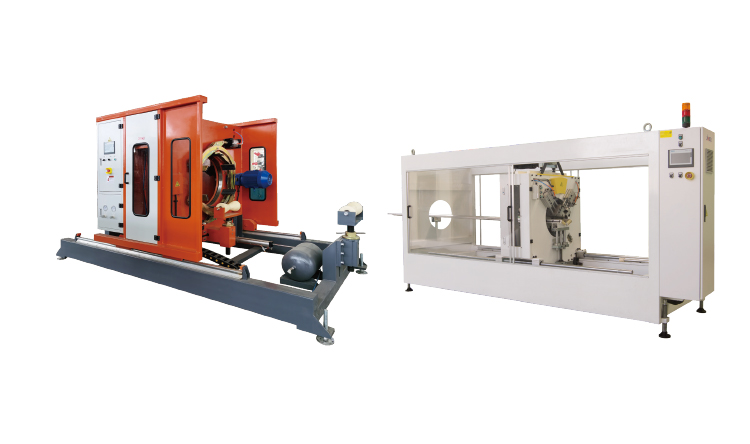

Properties: Mainly used for cutting the HDPE, PP, PPR, PE-RT pipe . Chipless cutter can protect the environment because there is  Chipless during the cutting and there is no noise.The cutting surface of the pipe is smooth and elegance. It is suitable for cutting  the pipes made by different materials and in different diameters.

● The production line adopts Siemens man-machine interface and Siemens computer control operating system, which can realize accurate control and humanized operation of the equipment.

● The calendering machine adopts super-mirror chrome-plating roller and is equipped with servo motor drive to effectively ensure the accuracy of products.

● Special winding machine for soft film can not only ensure the evenness of the edge of the finished coil, but also prevent wrinkling, bulging and stretching of the finished product.

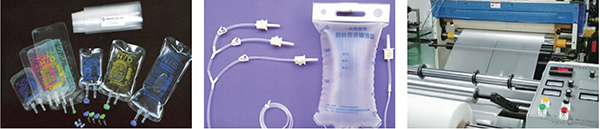

PVC soft bag is developed overcoming the shortcomings of glass bottles, with good chemical resistance, good temperature resistance performance. Main application: blood bag, urine bag, drainage bag and other fields.

Non-PVC soft infusion bag packaging is developed after glass bottle, plastic bottle and PVC soft bag. It is modified on the basis of PVC. It has the advantages of PVC soft bag and overcomes the disadvantages of PVC soft bag. Non-PVC infusion bag adopts closed

infusion, with balanced pressure, and can maintain human body without introducing external air.The circulation of the closed system, to avoid the risk of air pollution, is gradually becoming a infusion packaging trend.Non-PVC soft infusion bag has good temperature resistance, not any seasonal restrictions for transport and also no worry about severe shock to the product during transportation. Since the product has anti-drop characteristics, can be dropped from a certain height, suitable for disaster relief and first aid.

Pipe Crusher

Properties: DYPS-G series heavy pipe crusher can crush middle  diameter pipe directly without shredding in advance.  This series crusher inlet is specially designed for plastic pipe, the  pipe and the crusher rotor form a certain angle to reach the best  crushing effect, crushed pipes and profiles up to 6 meters in length. The crusher chamber is designed with third fixed knife, which can  change the required crushing material first cutting points. This kind  construction can reduce the impact force for high strength and large  volume of material and avoid the possibility of blocking material.

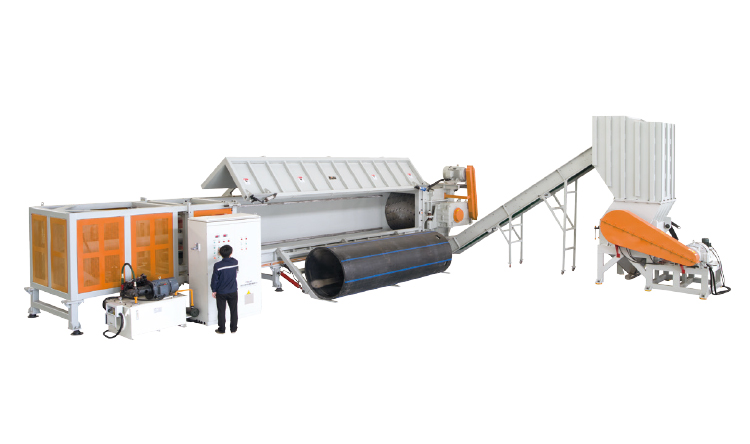

Pipe Crusher and Shredder Unit

Properties: DYSSG shredder is able to shred the PE, PP, PVC pipe with dia.1200mm, the length of 3-6m pipe can be shredded  directly without cutting, and the rotary speed is slow and stable. Variety of pipes is put into the flat feeding tank, and the tanks  closed automatically, and push the pipe by hydraulic into the center axis for shredding. The material after crushing is transported by conveyor belt for secondary crushing in order to get the requested granule. DYSSG shredder has the main advantage of energy saving safe and efficient, and the system is controlled by PLC center control system.

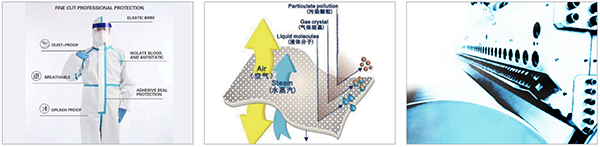

The production line use PE air-permeable plastic granule as raw material, and uses extrusion casting method to melt-extrude the PE-modified air-permeable plastic granule containing inorganic filler through a flat die and the roller is stretched at a high rate to produce a sub-nanometer micro Porous membrane.

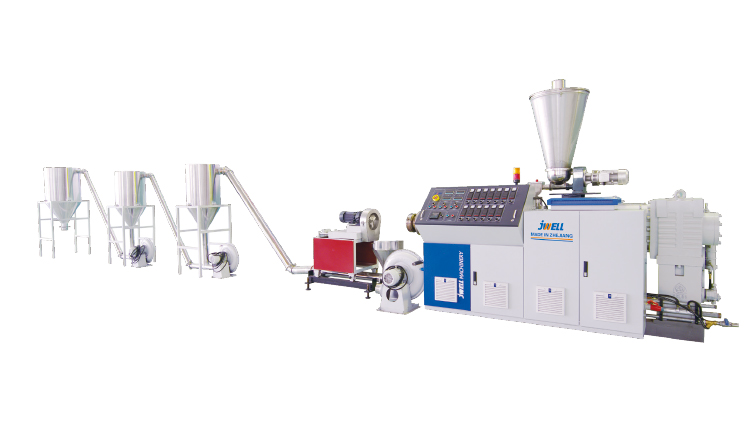

Properties: This pelletizing machine is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC, PE raw materials with wood powder or other additives. The pellets  produced by this machine is evenly, solid, elegant. The pelletizing downstream equipment is the die face cutter, air transferring  unit,vibration separating and cooling unit. This pelletizing downstream equipment has the features of high automation and high  production efficiency.

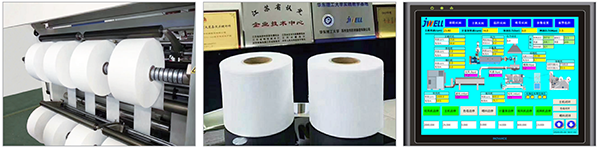

Meltblown Non-woven Fabric is mainly made of polypropylene, and the fiber diameter can reach 1 ~ 5 microns. There are many voids, fluffy structure, and good anti-wrinkle ability. These ultrafine fibers with unique capillary structure increase the number and surface area of fibers per unit area, so that the meltblown cloth has good filterability, shielding, heat insulation and oil absorption . Can be used in the fields of air, liquid filter materials, insulation materials, absorbent materials, mask materials, thermal insulation materials, oil-absorbing materials, and wiping cloths.

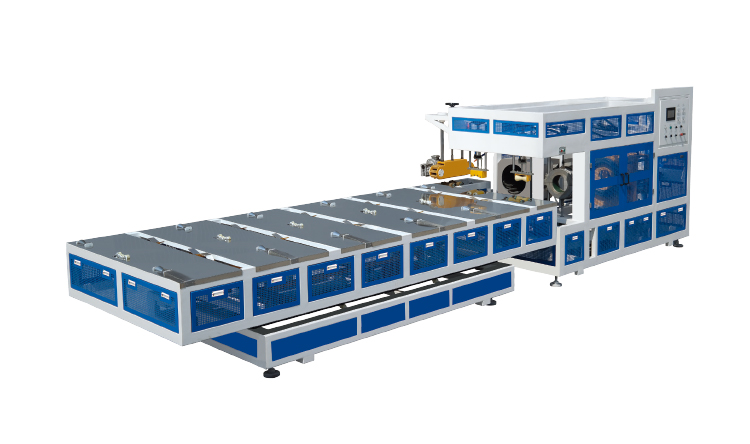

Properties: The belling system adopts the advanced European technology used for PVC solid wall pipe and double-wall corrugated pipe. Belling  type are rectangular type, U typeand R type. Automatic control uses the  Japanese mitsubishi PLC program control which is stable and reliable.  Belling die adopts hydraulic drive. Main production range is Φ 32 - Φ 800.

The production line is mainly for PVC, PP, PE etc. Plastic tube to medical products, chemical and drink fields. It has the following features:

●Advanced design technology, inverter control for main machine and markline machine, stable extrusion speed.

●Automatic control the water level and temperature in cooling trough.

●Belt and press roll for haul off machine, inverter control and stable haul-off speed.

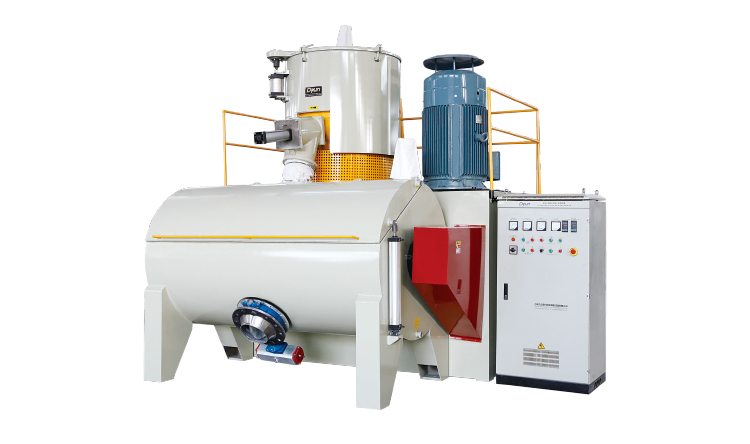

Properties: DYHL series mixer adopts PLC control, which combined machine units mainly used batching,mixing,coloring and  drying for various resins, such as polythene,polypropylene and PVC,as well as the drying and devolatilization process of engineering plastics such as ABS and polycarbonate before shaping, It also can be used for phenolic resin. This unit has combined  the technology of hot mixing and cool mixing,which can let the material enter cool mixing after hot mixing automatically so as to cool it and removal of residual gas to prevent blocking.

Drive system is special for high torque unit. Gear and shaft are made of high strength alloy steel, nitriding and polishing.

Temperature adjusting system and good cooling of barrel ensure an accurate temperature.

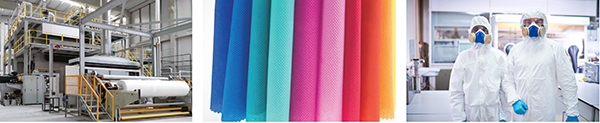

The machine is used to produce nonwoven fabrics for clothing, medical and sanitary materials, construction, industry, agriculture, disposable products for hotels and other nonwoven and industrial fabrics, etc.

The machine is used to produce nonwoven fabrics for medical isolation clothing, surgical clothing, sheets curtain, sanitary napkins, baby diapers, adult incontinence pad (pants) and other disposable medical protection and personal health care industry, etc.

Performance and advantages

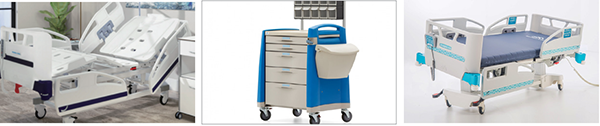

·Suitable for producing different kinds of plastic medical bed head boards、foot boards and guardrails

·Adopt high output extrusion system,accumulating die head.

·According to the different material, optional JW-DB single station hydraulic screen-exchanger system.

·According to the different product size, customized the platen type and size.

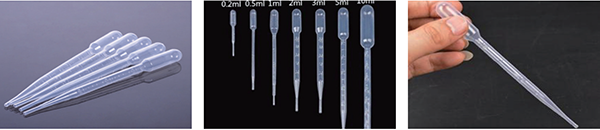

Disposable plastic straw pipe/dropper is widely used in laboratory, food research, medical industrial etc. Specifications are 0.2ml、0.5ml、1ml、2ml、3ml、5ml、10ml Etc.

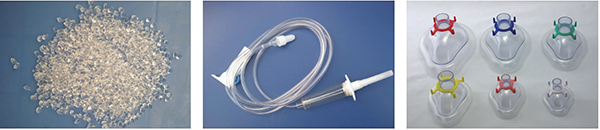

The medical grade PVC pelletizing machine from JWELL features, uniform granules, dense and beautiful. The auxiliary machine adopts die face granulation, air-driven collection and vibration separation and cooling. Machines has high degree of automation and good production efficiency

TPU is a safe, stable and high-quality PVC alternative material, which has been recognized by many intravenous infusion device manufacturers all over the world. Excellent kink resistance, elasticity and flexibility. The internal pressure resistance is much higher than that of PVC, the transparency is better than that of PVC / EVA and TPO, the chemical resistance is high, gamma ray and ETO can be used for sterilization, the drug adsorption is low and easy to bond. According to the rheological properties of polyurethane / TPU materials, our company made a bold attempt on the processing accuracy and cooling effect of the cylinder, and upgraded & redesigned key components, which basically solved some bottleneck problems restricting the production process of materials, greatly improved the reaction efficiency and capacity. We had win good market response and high recognition.

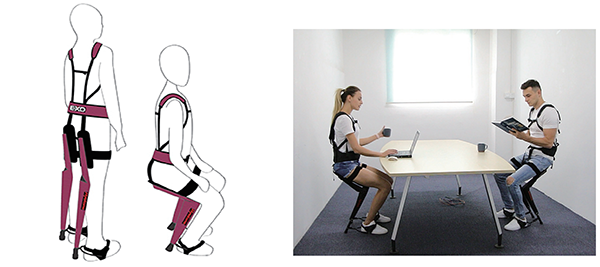

Flexible sitting exoskeleton solution

Material: carbon fiber, titanium alloy, engineering plastics, aviation aluminum, breathable flexible wrapping materials, etc.

Use range:The smart equipment to reduce the fatigue of workers, using lightweight materials, has the lightness that traditional seats do not have. With exoskeleton seats, workers in compact factories

You can sit down at any time in the space to save energy and improve work efficiency
